Spindle Screw Mechanical Mast “The Poseidon Mast“
Spindle screw mechanical mast （The Poseidon Mast） are developed by Tianhemast. The high performance The Poseidon telescoping mast family is available in lightweight composite or alloy construction and is designed for communications, reconnaissance, and surveillance applications. With its low nested height and small space claim, The Poseidon mast is the lightweight mobile solution for applications requiring rapid automatic deployment, maximum reliability and high directional pointing accuracy. Internal or external mountings are allowed for shelter installations as well .
When the mast is out of power , it can be manually operated as well.
Technical indicates:
|
MODEL |
Retracted height |
Extended height |
No of section |
Tube diameter range |
Payload capacity |
Power supply |
Mast approx. weight |
|
SPM-200*9 |
3.3m |
20m |
9 |
80-202mm |
50kgs |
24volt DC/ 220volt AC |
220kgs
|
|
MODEL |
Retracted height |
Extended height |
No of section |
Tube diameter range |
Payload capacity |
Power supply |
Mast approx. weight |
|
SPM-180*8 |
3.3m |
18m |
8 |
80-184mm |
50kgs |
24volt DC/ 220volt AC |
180kgs
|

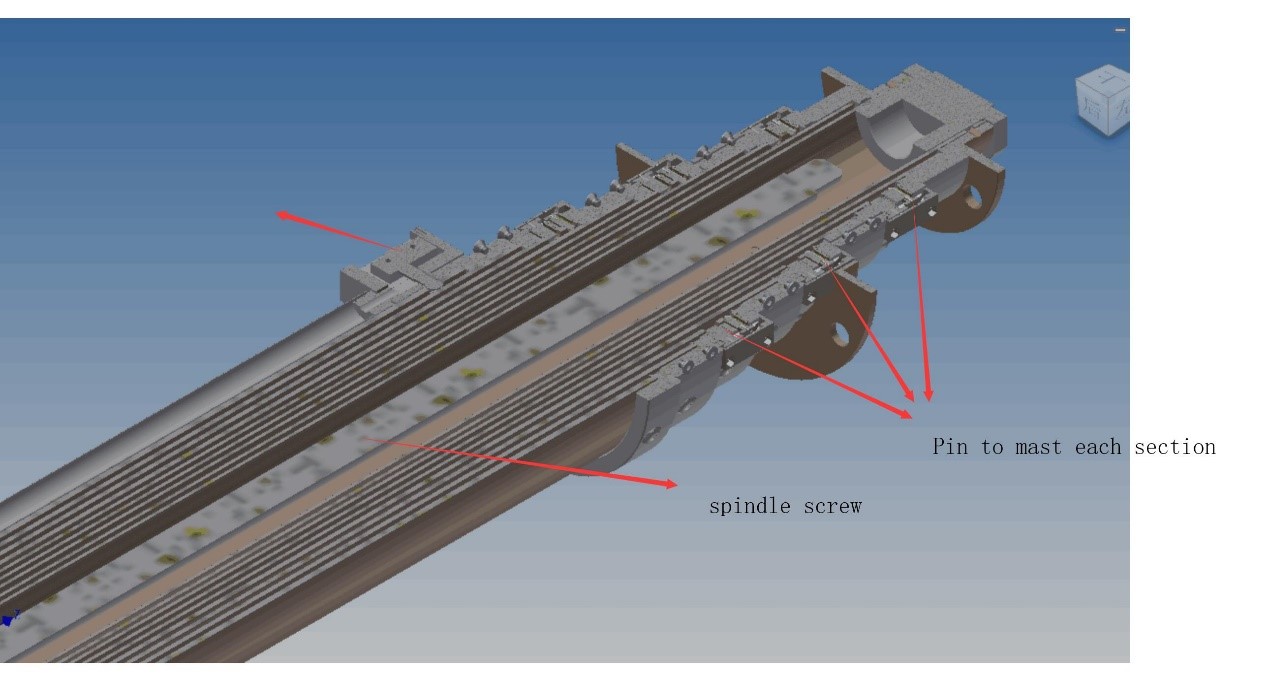

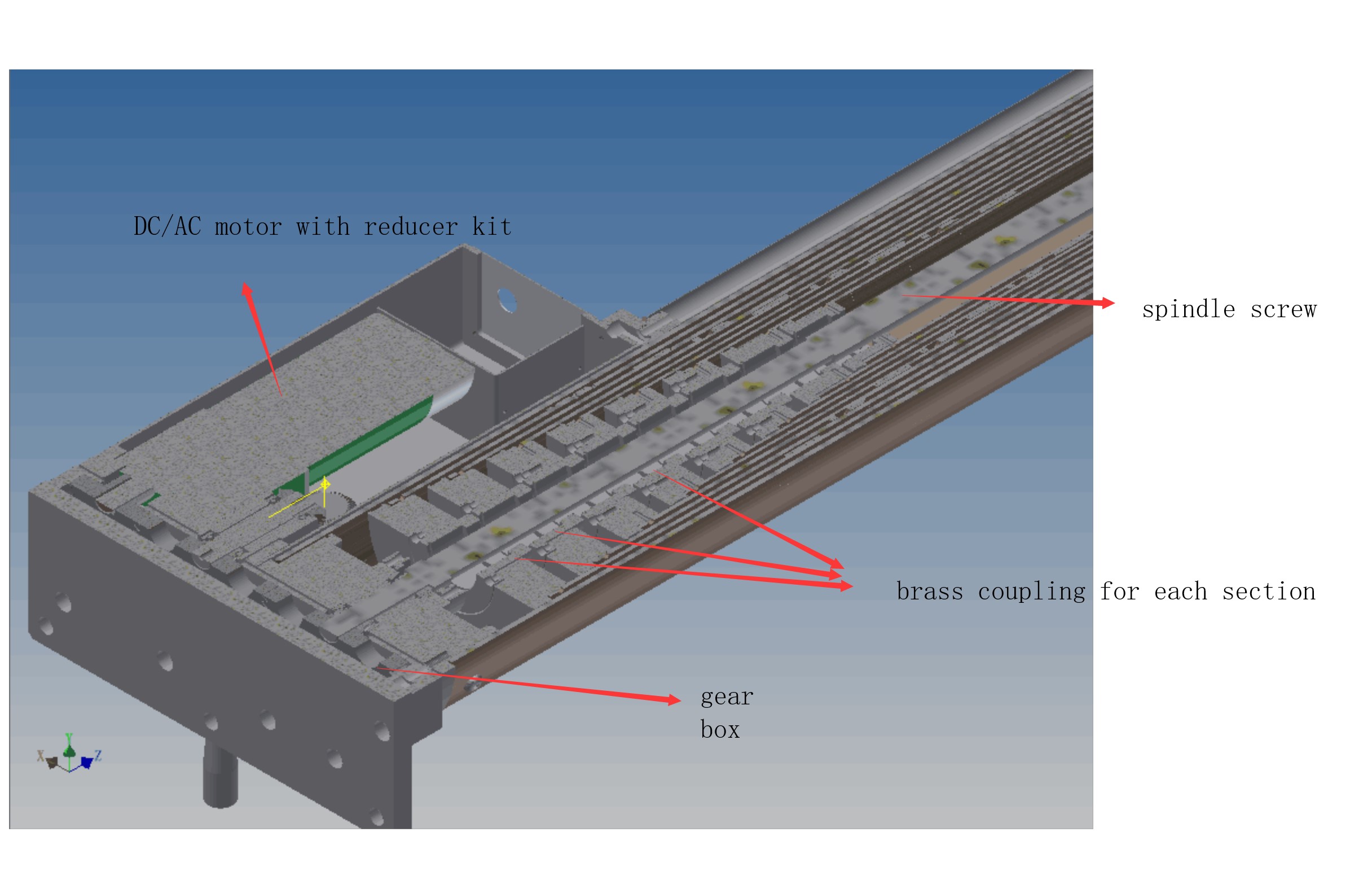

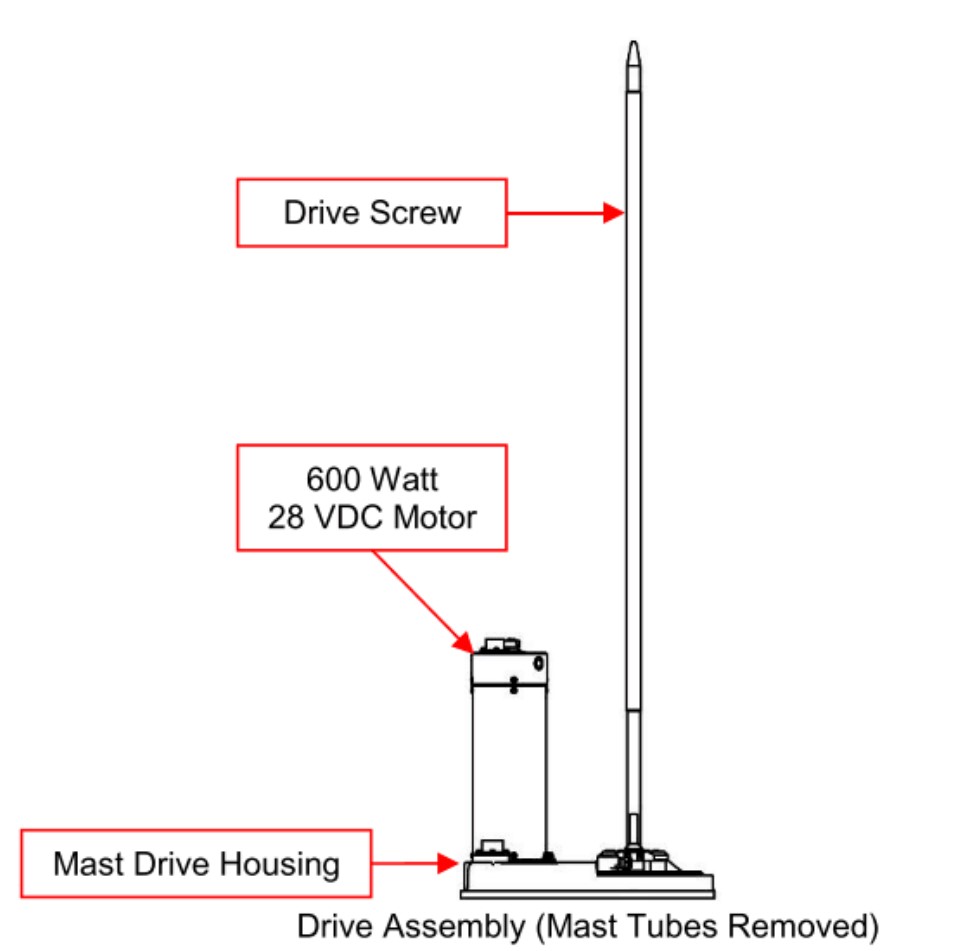

Internal structures :
